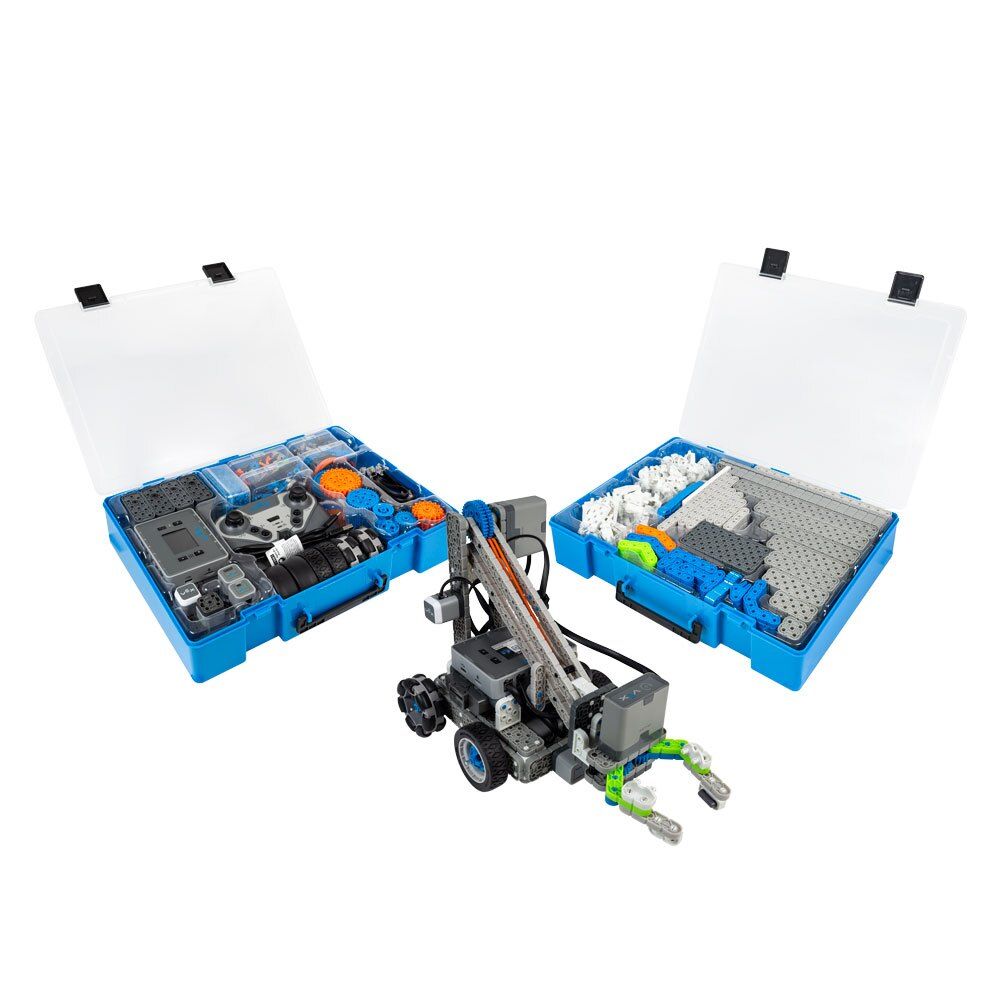

VEX IQ Education Kit (2nd generation)

Electronics

• (1) Robot Brain (2nd generation)
• (4) Smart Motor
• (1) Controller (2nd Generation)
• (1) Robot Battery (Li-Ion, 2000 mAh)
• (1) Touch LED
• (1) Bumper Switch
• (1) Optical Sensor
• (1) Distance Sensor
• (1) 600mm Cable
• (1) 400mm Cable
• (3) 300mm Cable
• (4) 200mm Cable
• (1) USB A-C Cable

Structure

• (5) 1x2 Beam
• (7) 1x4 Beam
• (2) 1x5 Beam
• (6) 1x6 Beam
• (8) 1x8 Beam
• (6) 1x10 Beam
• (4) 1x12 Beam
• (4) 1x16 Beam
• (5) 2x2 Beam
• (6) 2x4 Beam
• (6) 2x6 Beam
• (2) 2x7 Beam
• (6) 2x8 Beam
• (4) 2x10 Beam
• (6) 2x12 Beam
• (4) 2x16 Beam
• (2) 2x18 Beam
• (2) 2x20 Beam
• (2) 3x3 Plate
• (4) 4x4 Plate
• (2) 4x8 Plate
• (221) 1x1 Connector Pin
• (53) 1x2 Connector Pin
• (21) 2x2 Connector Pin
• (11) 0.25x Pitch Standoff
• (13) 0.5x Pitch Standoff
• (13) 1x Pitch Standoff
• (15) 2x Pitch Standoff
• (5) 4x Pitch Standoff
• (6) 6x Pitch Standoff
• (7) 1x1 Idler Pin
• (6) 2x Pitch Plastic Motor Shaft
• (6) 4x Pitch Plastic Motor Shaft
• (6) 3x Pitch Capped Plastic Shaft
• (4) 5x Pitch Capped Plastic Shaft
• (7) 0x2 Idler Pin
• (22) 0x2 Connector Pin
• (21) 0x3 Connector Pin
• (6) 3x Pitch Plastic Motor Shaft
• (11) 0.5x Pitch Standoff Extender
• (24) Washer
• (28) 0.25x Pitch Spacer
• (2) 4x Pitch Shaft
• (4) 6x Pitch Shaft
• (6) Large Chassis Corner Connector
• (15) Small Chassis Corner Connector

• (11) 2x Wide, 1x2 Corner Connector
• (9) 1x Wide, 1x1 Corner Connector
• (13) 1x Wide, 1x1 Offset Corner Connector
• (4) 2x Wide, 2x1 Offset Corner Connector
• (5) 2x Wide, 2x1 Corner Connector
• (3) 2x Wide, 1x1 Offset Corner Connector
• (10) 2x Wide, 2x2 Corner Connector
• (8) 2x Wide, 1x2 Offset Corner Connector
• (4) 2x Wide, 2x2 Offset Corner Connector
• (4) 2x Wide, 3x2 Corner Connector
• (32) Rubber Shaft Collar
• (4) 3x4 Tee Beam
• (5) 2x3 Right Angle Beam
• (4) 3x3 30 Degree Angle Beam
• (4) 3x3 45 Degree Angle Beam
• (4) 3x3 60 Degree Angle Beam
• (4) 3x5 Right Angle Beam
• (4) 4x4 Offset Right Angle Beam
• (10) 1x1 Beam
• (3) Rubber Band Anchor
• (11) Cable Anchor
• (13) Mini Standoff Connector
• (9) End Standoff Connector
• (9) 90 Degree Standoff Connector
• (2) Tire (200 mm Travel)
• (10) 12 Tooth Gear
• (6) 36 Tooth Gear
• (2) Double 2x Wide, 2x2 Corner Connector
• (4) 24 Tooth Gear
• (2) 48 Tooth Gear
• (53) Chain Link
• (4) 8 Tooth Sprocket
• (4) 16 Tooth Sprocket
• (2) 24 Tooth Sprocket
• (5) Traction Link
• (3) Short Intake Flap
• (2) Medium Intake Flap
• (2) 1x4 Crank Arm with 23 Tooth Gear
• (5) Double 2x Wide, 1x2 Corner Connector
• (4) Double 2x Wide, 2x2 Double Offset Corner Connector
• (5) 1x Pitch Plastic Motor Shaft
• (4) 2x Wide, 60 Degree Omni 1x2 Corner Connector
• (2) 1x Wide Spool
• (2) 24x Pitch Rope
• (2) Silicone Rubber Band #32
• (1) 2x8 Smooth Panel
• (4) 1x3 Center Lock Beam
• (2) Small Wheel Hub (44mm)
• (8) Triple 2x Wide, 2x2 Corner Connector
• (5) 1x4 Low-Profile End Lock Beam
• (6) 2x2 Center Offset Round Lock Beam
• (2) 2x Wide, Ø48.5mm Diameter Hub
• (2) 2x Wide, 5x Pitch Diameter Balloon Tire (Racing Slick Tread)
• (3) 2x Pitch Capped Shaft
• (3) 3x Pitch Capped Shaft
• (3) 4x Pitch Capped Shaft
• (2) 5x Pitch Capped Shaft
• (4) 2x Pitch Motor Shaft
• (4) 3x Pitch Motor Shaft
• (4) 4x Pitch Motor Shaft
• (2) Omni Wheels
• (1) Pin Tool
